The problem
Control range is limited by the modem's own output. At long distance or in heavy interference, ground antennas alone cannot close the link.
IntegrationGround
Booster SubGHz
RF power amplifier
10 W of link margin for the control channel
10Woutput power
19dBgain
Sub-GHz433 / 868 MHz
133gweight
What Booster SubGHz does about it
The booster adds 19 dB of gain to the NV/5 ground unit, up to 10 W output, in an enclosure that keeps the amplifier's own emissions away from the receivers next to it.
Overview
Link margin for the ground station
Booster SubGHz is a power amplifier for the NV/5 control link. Installed in the ground station between the modem and the antenna, it raises the transmitted power to 10 W and gives the uplink the margin to reach an aircraft at the far end of the video range, or one flying in an environment where the noise floor has been raised on purpose.

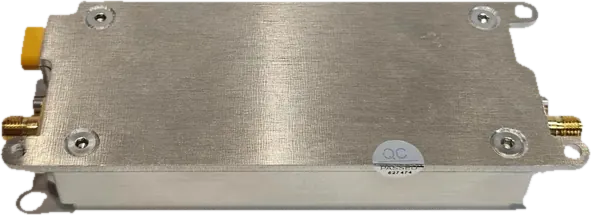

The amplifier is built into a milled aluminium enclosure with SMA input and output. The shielding matters: the booster sits centimetres from sensitive receivers, and its housing keeps its own emissions where they belong.
The booster is matched to the NV/5 bands (433 and 868 MHz). It is a ground-station accessory by default; airborne use is possible on platforms with the power budget.
Technical specification
Booster SubGHz in numbers
Values marked "on request" are in the full datasheet, available under NDA
RF
| Output power | 10 W |
|---|---|
| Gain | 19 dB |
| Band | Sub-GHz, matched to NV/5 (433 / 868 MHz ISM) |
| Connectors | SMA input and output |
Physical
| Weight | 133 g |
|---|---|
| Enclosure | Milled aluminium, shielded |
| Dimensions | on request |
| Supply voltage | on request |
| Operating temperature | on request |
Specifications are subject to change as the product develops. Range and sensitivity figures depend on antenna, installation and RF environment
Integration
On the platform
- Inline between the NV/5 ground modem and the antenna.
- Mounting flanges for a ground station enclosure or a mast box.
- Operating band matched to the selected NV/5 configuration.
Works with
Complete the link
Next step
Discuss Booster SubGHz for your platform
Tell us the aircraft, the payload and the threat environment. We reply with a configuration and a path to a pilot
